Hamiltonian and Hamilton Path

Hamilton Circuit

Do you remember what a Hamilton circuit is?

A Hamilton circuit is a circuit or cycle that includes each vertex of a graph exactly once except for the initial vertex and the final vertex, which are the same.

Look at the two graphs K1 and K2 below. Which one has a Hamilton circuit and which one does not?

Answer: In graph K1, we can touch every vertex by following a path from (y, b, a, x, c). However, we cannot finish back at vertex y without using another vertex before we return to y.

In graph K2, we can go from (a, c, b, d, a). The Hamilton circuit is complete.

Hamiltonian

Definition: If there exists a Hamilton circuit, then the graph is Hamiltonian.

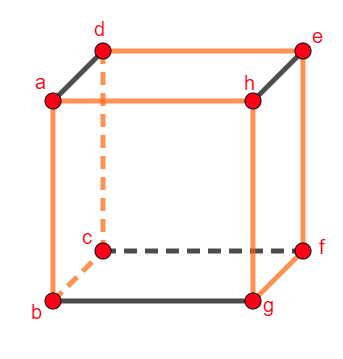

Look at the graph K3 below. This is a cube or graph with 8 vertices.

a cube with 8 vertices

There is a Hamilton circuit from (a, b, c, d, e, f, g, h, a).

Hamilton Path

Remember a Hamilton path in a graph is a path that includes each vertex once and only once.

If you have a Hamilton circuit, like we did in graph K3 and remove the last edge, what do we have?

Answer: You have a Hamilton path from (a, b, c, d, e, f, g, h).

Adding Edges in a Hamilton Circuit

What happens if you add an edge to a Hamilton circuit in the graph K3?

Answer: Because the graph is Hamiltonian, adding an extra edge between two vertices results in a graph that is still Hamiltonian. In general, if you have a Hamiltonian graph and you add more edges to the graph, then you still have a Hamiltonian graph as long as you do not add any more vertices.

Hamiltonian Investigation

Definition: If A is a subgraph of B, then B is said to be a supergraph of A. The notation is A ⊆ B.

If graph A is Hamiltonian, then any supergraph A' (pronounced "A prime") where A' is obtained by adding new edges between non-adjacent vertices of A is also Hamiltonian.

Observation: The circuit on n vertices is Hamiltonian. We can say that An is Hamiltonian using mathematical notation.

Example #1

In this example, let A' be a complete supergraph of A. Remember, a complete graph has every vertex connected to every other vertex by an edge.

If A is Hamiltonian, then we know that the complete graph A' is also Hamiltonian. A ⊆ A'

Bipartite Graphs and Hamiltonian

Hamiltonian Example

Remember If V1 has n elements and V2 has m elements, then the resulting bipartite graph is denoted Kn, m.

Show that Kn, m is Hamiltonian if and only if m = n and each has at least 2 vertices in each of the partite sets.

We are not going to prove this, but we want to explore a few different examples.

Example #2

Let Kn, m have a bipartition V1 and V2 where V1= n vertices and V2 = m vertices.

The graphs K1 and K2 have a bipartite and both parts of the graph have the same vertices.

How many edges are there in each graph?

Answer: K1 = 4 edges and K2 = 6 edges

Your Turn #1 Hamiltonian

Determine if the bipartite graphs below have an even or odd number of edges.

How many edges does K3 have?

Answer: K3 has 5 edges (odd), so this is a Hamilton path

How many edges does K4 have?

Answer: K4 has 10 edges (even), so this is a Hamiltonian.

Is This Hamiltonian?

Look at the graph K5 above. Does it contain a Hamilton path? If it does, what is the path?

Possible answers are: (z, a, y, b, x), (x, b, y, a, z), or (y, b, x, a, z)

Is K5 Hamiltonian?

Hint: Try starting at all 5 vertices.

Vertices Possible paths Comments
a (a, x, b, y, a, z, a) or (a, y, b, x, a, z, a) Notice how in both paths you have to go through a 3 times.
b (b, x, a, y, a, z, a, y, b) or (b, y, a, z, a, y, b) Notice how you cannot get back to b without going through other vertices more than once.
x (x, b, y, a, z, a, x) or (x, a, z, z, y, b, x) Notice how you cannot get back to x without going through other vertices more than once.
y (y, b, x, a, z, a, y) or (y, a, z, a, x, b, y) Notice how you cannot get back to y without going through other vertices more than once.
z (z, a, y, b, x, a, z) or (z, a, x, b, y, a, z) Notice how you cannot get back to x without going through other vertices more than once.

Answer: No, K5 is not Hamiltonian.

Example #3 Connected Graph without Hamilton Path

Which connected graphs do not have Hamilton paths?

  1. K6
  2. K7
  3. K8
  4. K9

Answer(s): K6, K8, and K9

Hamilton Path and Hamilton Circuit

Look at the graph K10. Can a Hamilton path always be used to form a Hamilton circuit?

Explain.

Answer: No, it can't be used to form a Hamilton circuit. You can travel from (b, c, a, d) which is a Hamilton path, but you cannot get back to b without crossing back over one of the same vertices. Even going from (c, b, a, d) is a Hamilton path, but you cannot get back to c without crossing a again.

Trees

Tree Graphs

What is the relationship between the vertices of a tree graph and the edges?

Example #4

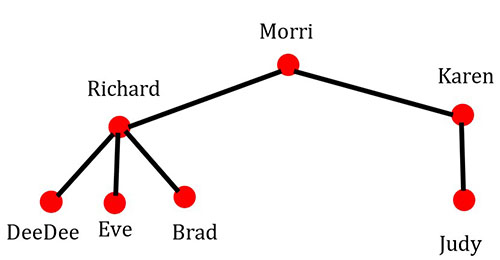

In K11 below, you see that there are 7 vertices and 6 edges.

Example #5

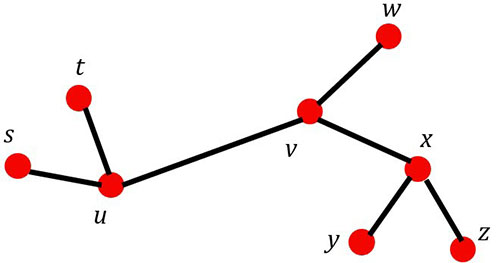

In K12 below, you see that there are 8 vertices and 7 edges.

From the examples, it looks like if the number of vertices is n, then the number of edges is n − 1 or 1 less than the number of vertices.

Tree Graph Properties

In every tree, the number of edges is equal to the number of vertices − 1.

Written mathematically:

Theorem: In every tree T with <v, e>, e = v − 1

Remember proof by induction?

  • Show true for e = 0. Since there are no edges, then we have 1 vertex. 0 = 1 − 1.
  • Assume e ≥ 1 . There is at least 1 edge. Then we know there is at least 1 vertex v ∈ T.
  • So T' = T − v. What does this mean?

Example #6

Tree T has 5 vertices and 4 edges. If you take 1 vertex away you still have a tree T' with 4 vertices and 3 edges.

We have a smaller tree in T'. What do we know about the edges in T' ? We know that e' = e − 1 because we removed 1 vertex, so one edge will be removed. So, the number of vertices v' = v − 1.

Then we have e'= v'− 1 because the induction hypothesis says:

  • e = v −1
  • e' + 1 = v' + 1 − 1
  • e' + 1 = v'
  • e' = v' − 1

So, we have proved that e = v − 1.

Example #7 Tree Graph Property

Let T1 = (v1, e1) and T2 = (v2, e2) be two trees with e1 = 17 and v2 = 2v1

Find v1, v2, e2.

e = v − 1

e1 = 17 = v1 − 1

v1 = 17 + 1 = 18

v2 = 2(v1) = 2(18) = 36

e1 = v2 − 1 = 36 − 1 = 35

So, we got:

  • v1 = 18,
  • v2 = 36, and
  • e2 = 35.

Your Turn #2 Tree Graph Property

Let T1 = (v1, e1) and T2 = (v2, e2) be two trees with e1 = 20 and v2 = 3v1

Find v1, v2, e2.

e = v − 1

e1 = 20 = v1 − 1

v1 = 20 + 1 = 21

v2 = 3(v1) = 3(21) = 63

e1 = v2 − 1 = 63 − 1 = 62

So, we got:

  • v1 = 21,
  • v2 = 63, and
  • e2 = 62.

Your Turn #3

Let T1 = (v1, e1) and T2 = (v2, e2) be two trees with e1 = 15 and v2 = 2 + 4v1

Find v1, v2, e2.

e = v − 1

e1 = 15 = v1 − 1

v1 = 15 + 1 = 16

v2 = 2 + 4(v1) = 2 + 4(16)

= 2 + 64 = 66

e1 = v2 − 1 = 66 − 1 = 65

So, we got:

  • v1 = 16,
  • v2 = 66, and
  • e2 = 65.

Example #8 Tree or not Tree

Give a graph G = (v, e) where v = e + 1, but G is not a tree. These two graphs below are examples that have 5 vertices and 4 edges and are not trees.

Your Turn #4

Give a graph G = (v, e) where v = e + 1, but G is not a tree. The graphs below are examples of how many vertices and how many edges?

These two graphs have:

  • 3 vertices, and
  • 2 edges.
